Advantech DAQNavi LabView Express VI Programming Samples

Advantech DAQNavi LabView Express VI Programming Samples
1. Realize Analog Input Function (Using Demo Device)

2. Realize Digital Input/Output Function (Using USB-4751 Module)

For How to Install the LabView Driver, Please refer How to Find and Download Advantech DAQNavi Driver.

~Please don't leave question here; if you have any question, please contact your Advantech sales or send email to Advantech. Thank you~

如何使用研華DAQNavi LabView Express VI

如何使用研華DAQNavi LabView Express VI
研華DAQNavi Labiew驅動程式是基於DAQNavi的驅動程式架構上

系統需求:
支援的作業系統:
– Windows XP; Windows7-32; Windows7-64;WindowServer2003-64
支援的LabView版本:
– Labview 8.6 或更高

開發環境硬體架構:
(基於NI LabView的相容環境)
–CPU 至少 600 MHz 或更高
–VGA resolution (or higher) video adapter
–Minimum of 256 MB of memory
–Minimum of 5 MB of free hard disk space
–Microsoft-compatible mouse

如何下載與安裝研華DAQNavi驅動程式:
如何安裝研華DAQNavi驅動程式

研華Express VI簡單的使用步驟:
步驟1: 加入一"DAQNavi Assistant"

步驟2: 選擇VI所需要的功能;

步驟3: 選擇DAQ模組的進一步功能;

步驟4: 選擇欲驅動的DAQ模組；若無法選到連接的DAQ模組，請確認驅動程式安裝。

步驟5：設定輸入/輸出信號截取。

步驟6：設定輸入輸出通道。

步驟7：檢查VI設定值。

步驟8：完成信號連接與顯示，完成程式。

程式開發教學範例: Advnatech DAQNavi LabView Programming

~請勿在此發問；若有問題請洽研華業務或撥0800-777-111。感謝~

Using Advantech DAQNavi LabView

Using Advantech DAQNavi LabView
The Advnatech DAQNavi LabView driver is based on the DAQNavi Driver

System requirement:
Supported Operating Systems:
– Windows XP; Windows7-32; Windows7-64;WindowServer2003-64
Supported labview version:
– Labview 8.6 or higher version

To use , you must have the following:
–Computer using at least a 600 MHz or higher microprocessor
–VGA resolution (or higher) video adapter
–Minimum of 256 MB of memory
–Minimum of 5 MB of free hard disk space
–Microsoft-compatible mouse

Installation and Download the Driver:
How to Find and Install Advnatech DAQNavi Driver

Easy Start up please follow below steps:

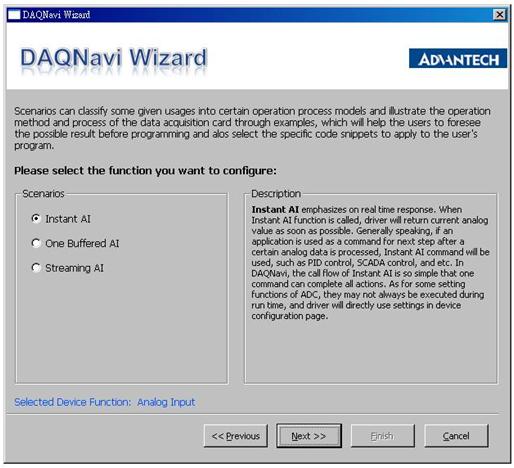

Step1: Add an Express VI of "DAQNavi Assistant"

Step2: Select what function this VI will use;

Step3: Select a further function of DAQ module;

Step4: Select a DAQ Module; if you cannot find the right module, please check your DAQ driver.

Step5: Setting the signal input/output configuration;

Step6: Select channel scan;

Step7: Check the Express VI configuration;

Step8: Complete the data connect;

Programming Guide Sample: Advnatech DAQNavi LabView Programming

~Please don't leave question here; if you have any question, please contact your Advantech sales or send email to Advantech. Thank you~

如何安裝研華DAQNavi驅動程式

研華DAQNavi驅動程式安裝 Advantech DAQNavi Driver Installation:
OS相容 WinServer2008 / WinServer2003 / WinXP / WinVista / Win7

下載與安裝“DAQNavi_SDK&Drivers_3.1.6.0.exe ”
此為最新版驅動程式，安裝內容已包含SDK、DAQ底層驅動程式(AutomationBDaq.dll)、研華DAQ卡驅動程式、與各支援語法之使用範例程式，如C++、C#、MFC、Delphi、VB.Net與LabView等。

安裝完成之後，我們可以先借由研華所附的軟體工具Navigator來測試，若需要使用研華所提供的範例程式，可以在C:\Advantech\DAQNavi\Examples中找到。
(Navigator：開始 → 所有程式 → Advantech Automation → DAQNavi → Navigator)

備註1: DAQNavi相容於Win XP直接安裝即可；若安裝於Win 7系統，請使用「管理員身分安裝」較佳。

備註2: 最新版本的驅動程式，可以在研華的官方網站上下載。以下是一個範例，說明如何在研華官網上找尋與下載驅動程式。

備註3: 安裝與新增DAQ卡驅動程式
            步驟一：點選"Support Device"
            步驟二：點選需要安裝的卡片右鍵"Install Driver"，軟體即會開始安裝驅動程式。

從研華網站上下載:

1.  至研華官網首頁 → Download

2.  鍵入DAQ產品型號→搜尋

3.  選擇 "Driver" 項目

4.  選擇 “DAQ Driver for PCI-1710 (DAQNavi) (Win7/WinXP/WinServer 64/32-bit)”

     注意: 請留意驅動程式敘述須符合 “(DAQNavi) (Win7/WinXP/WinServer 64/32-bit)” for other serial DAQ module.

5. 下載軟體程式

DAQNavi Navigator使用操作範例 (使用USB-4716為例)：

~請勿在此發問；若有問題請洽研華業務或撥0800-777-111。感謝~

How to find and install the Advnatech DAQNavi Driver

Advantech DAQNavi Driver Installation:
Compatible with WinServer2008 / WinServer2003 / WinXP / WinVista / Win7

Download and install "DAQNavi_SDK & Drivers_3.1.6.0.exe"

This is the latest version of the Advantech DAQ driver, installed content has contains SDK, Advantech DAQ underlying driver(AutomationBDaq.dll), individual Advantech DAQ drive and support example program, such as C + +, in C #, the MFC, Delphi and LabView, etc..

After install above software, we can start from the Navigator testing, and we can find the sample code which Advantech provided in C:\Advantech\DAQNavi\Examples.
(Navigator: Start → All Program → Advantech Automation → DAQNavi → Navigator)

NOTE1: The driver can install to the XP directly; when install to the Win7, please use the “Management privileges” to install all software.

NOTE2: For the latest version of software, we can download for Advantech website. Following is an example to find the download location.


NOTE3: Install Device Driver
Step1: Click"+" at support device

Step2: Choose whatever you want to install device, and then right click to install driver

Download from Advantech:

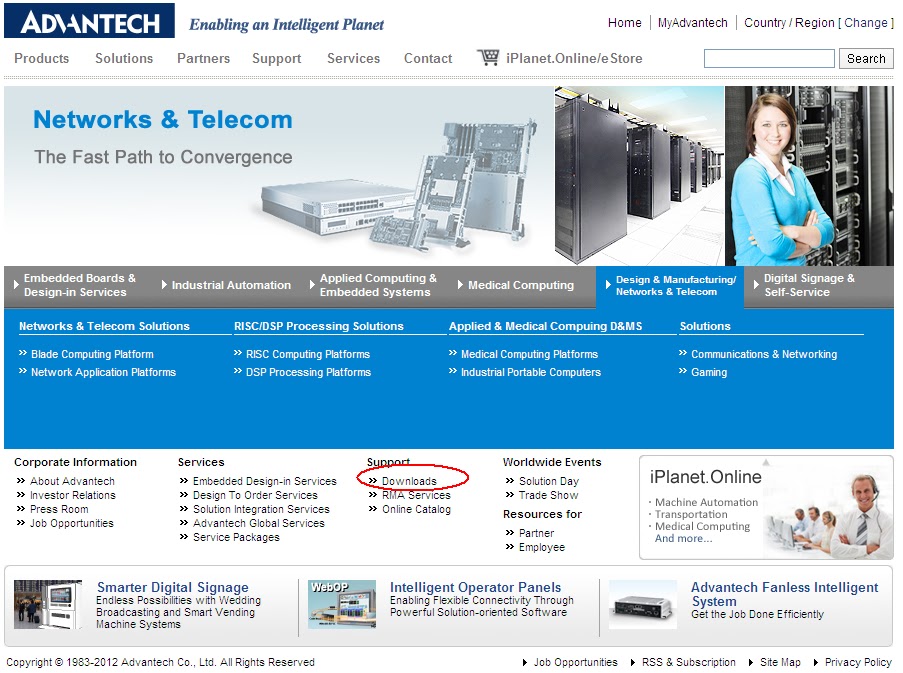

1.  Go to the Advantech Home Page → Download

2.  Search the product

3.  Select the Driver

4.  Choose “DAQ Driver for PCI-1710 (DAQNavi) (Win7/WinXP/WinServer 64/32-bit)”

     NOTE: Please mind the description with “(DAQNavi) (Win7/WinXP/WinServer 64/32-bit)” for other serial DAQ module.

5. Find the download files

Referance for Using Advantech Navigator (Example with USB-4716):
